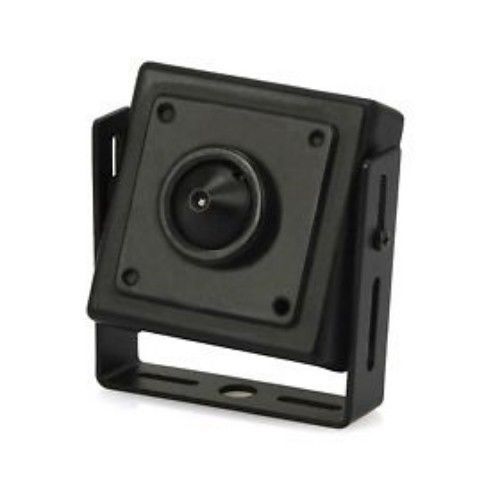

PINHOLE 1080P TVI CAMERA

Technical Specifications

Model No. DSS-SP101-1080P
Camera
Image sensor 1/2.8“ Progressive CMOS
Min. illumination 0.01 Lux @ (F1.2,AGC ON)
Shutter time 1 / 25 s to 1 / 50,000 s
Lens Fixed Lens 3.7mm
Lens mount M12
Day & night ICR
Digital noise reduction 3D DNR
Wide dynamic range DWDR
Synchronization Internal synchronization
HD Video Output 1 Analog HD ouput yellow
CVBS Output 1 Analog outpute black
S/N Ratio More than 52dB
Max. Image Resolution 1920(H)*1080(V)
Signal System NTSC
Frame rate 1080p@25fps / 1080p@30fps
Image settings Saturation, brightness, contrast, sharpness adjustable through client software or web browser
BLC Supported
General
Power supply DC 12V, 500mA
Power consumption Max. 3W
Weather proof rating N/A
IR range N/A
Dimension 120MM (W) x 56MM (H)
Weight 0.3Lb
